1. Introduction
The desktop capping machine is an electric e‑cigarette device designed to quickly, conveniently, and accurately cap multiple e‑cigarettes of various specifications at the same time.
2. Main Structure and Working Principle
2.1 Main Structure
The machine is mainly composed of a frame, a pressing fixture, and an electric cylinder assembly. (This equipment is shipped fully assembled and does not require customer installation.)
2.2 Working Principle
This equipment is used for pressing the mouthpiece onto e‑cigarette atomizers. It consists of the frame, pressing fixture, and electric cylinder assembly. The mechanical system includes the frame assembly and the pressing assembly. These components operate in coordination to ensure that the atomizer mouthpiece is pressed securely, conveniently, and precisely.
3. Main Performance Parameters

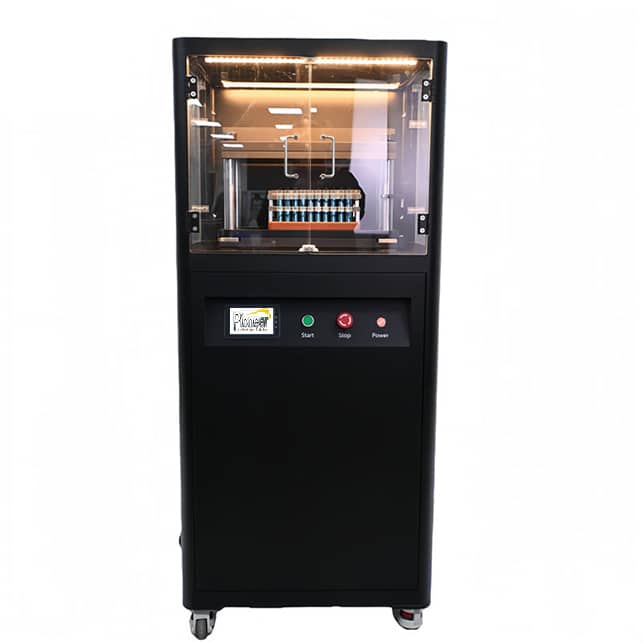

- Model Name: Desktop Servo Capping Machine DHC6E
- Input Voltage (V): AC 110V, 60Hz
- Input Power Capacity: 2.5 kW
- Compatible Atomizer Length Range: 20–160 mm
- Machine Dimensions (L × W × H): 650 × 500 × 1500 mm
- Machine Weight: 250 kg
- Operating Temperature: 10–40 °C
- Working Pressure Range (Tons): 0.5–10 T
- Control Method: Electronic pressure control
- Pressing Area (mm²): 240 × 320
