1. Overview

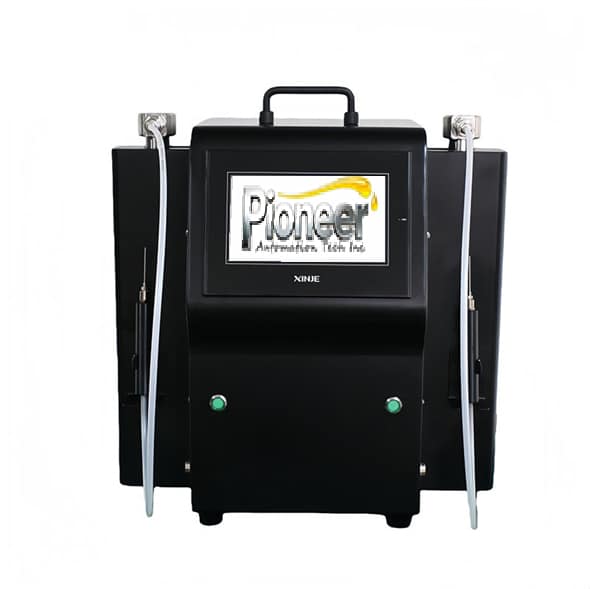

The electric oil‑filling machine is an automated device designed to quickly, conveniently, and accurately fill multiple product specifications with oil at the same time.
2. Main Structure and Working Principle
2.1 Main Structure
The machine is mainly composed of mechanical components and an electrical control system. The electrical section uses a touch‑screen display. (This equipment is shipped fully assembled and does not require customer installation.)
2.2 Working Principle
This equipment is used for injecting e‑liquid. It consists of mechanical components and an electrical control system. The mechanical system includes an electric oil‑filling module. All components operate in coordination to enable simple, convenient, and precise oil injection. Positioning sensors transmit equipment data to the touch‑screen display, allowing the machine to operate automatically with real‑time display of all filling parameters.
3. Main Performance Parameters
| Item | Parameter | Item | Parameter |
|---|---|---|---|
| Input Voltage (V) | Single‑phase AC 110V, 60Hz | Liquid Accuracy (Rated Stroke) | Error ≤ 1% |
| Input Power Capacity | 0.8 kW | Liquid Accuracy (Repeatability) | Error 0.3%–0.7% |
| Machine Dimensions | 420 × 260 × 420 mm | Injection Volume Range | 0.5–20 mL |
| Machine Weight | 15 kg | Wetted Materials |
